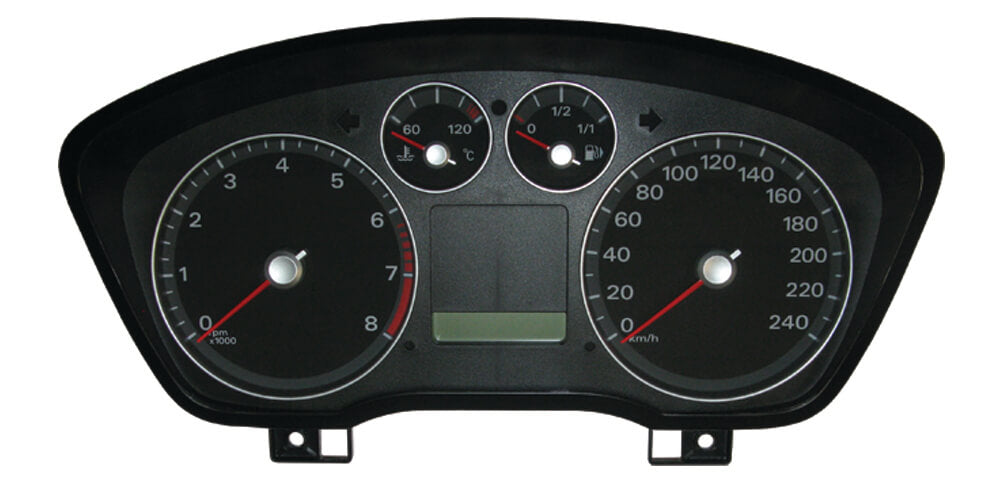

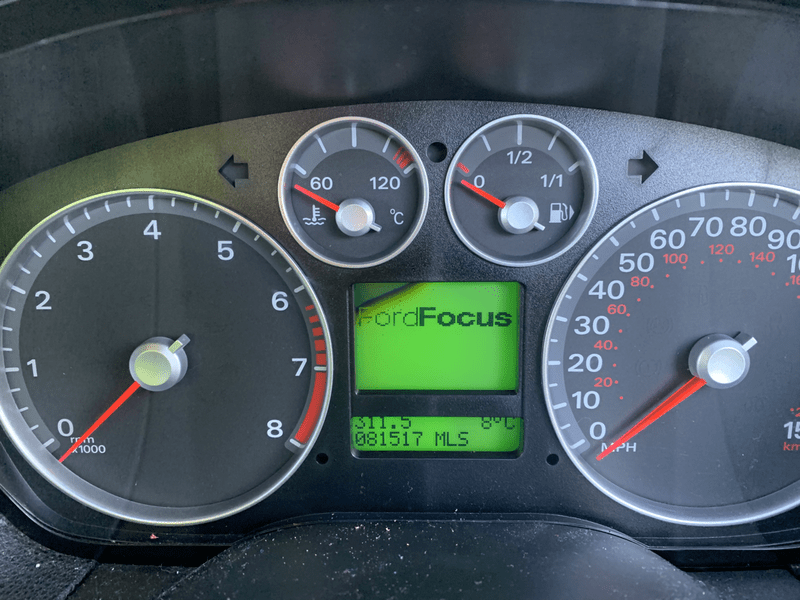

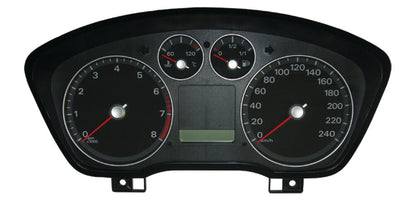

Ford Focus 2004-2008 Instrument Cluster Repair

THIS IS A REPAIR SERVICE AND NOT A REPLACEMENT. YOU NEED TO SEND US YOUR INSTRUMENT CLUSTER. IF WE FIND NO FAULTS WE WILL REFUND YOUR ORDER MINUS A TESTING FEE OF £50 PLUS RETURN POSTAGE COST.

RETURN POSTAGE IS £9.99 FOR THIS SERVICE, POSTAGE TO US MUST BE PAID FOR BY YOU.

Symptoms:

1. Intermittent/Non-Start: At times, your car might refuse to start, accompanied by a constantly flashing red immobilizer light (PATS system). A gentle tap on the dashboard might temporarily restore functionality, but this issue can escalate to a permanent fault.

2. Erratic Gauges: Gauges may suddenly drop to zero, often accompanied by the illumination of all warning lights.

3. Engine Malfunction Warnings: The instrument cluster might display "Engine Malfunction" messages on the LCD.

4. Warning Lights: Unexpectedly, your dashboard could be illuminated with various warning lights such as ABS, airbag, and check engine lights, creating a visually alarming effect.

Fault Codes:

• U0140 - Lost Communication with Body Control
• U1900 - CAN BUS Fault
• U2012 - CAN Communication Error
• P1260 - Theft Detected Vehicle Immobilized
• U1900 - CAN Communication BUS Fault - Receive Error
• U2510 - CAN Invalid Data for Vehicle Security
• U2197 - Invalid Vehicle Speed Data
• U2200 - Invalid ODO Count Data
• U0155 - Engine ECU Lost Communication with Instrument Cluster
• U2511 - Receive Data Does Not Match Expected

Typically, during the early stages of cluster failure, you might experience one of these symptoms briefly. This serves as an indication that your cluster is beginning to fail. If left unaddressed, this could progress to a point where your vehicle refuses to start. If you are encountering these symptoms or have relevant fault codes, it's likely that your instrument cluster requires repair.

CHECK YOUR PART NUMBER ON THE BACK TO SEE IF IT MATCHES TO ENSURE YOU ARE SELECTING THE CORRECT ITEM TO BE REPAIRED.

Part Numbers:

VM no: 3M5F-10841-A / 3M5F-10A855-A / 3M5T-10849-BH / 3M5T-10849-DJ / 3M5T-10849-FH / 3M5T-10849-FJ / 3M5T-10849-GJ / 3M5T-10849-HH / 3M5T-10849-HJ / 4M5T-1049-KM / 4M5T-10849-AM / 4M5T-10849-BH / 4M5T-10849-BJ / 4M5T-10849-BK / 4M5T-10849-BL / 4M5T-10849-BM / 4M5T-10849-CM / 4M5T-10849-DJ / 4M5T-10849-DK / 4M5T-10849-DL / 4M5T-10849-DM / 4M5T-10849-FM / 4M5T-10849-FN / 4M5T-10849-FP / 4M5T-10849-FR / 4M5T-10849-FS / 4M5T-10849-GM / 4M5T-10849-HK / 4M5T-10849-HL / 4M5T-10849-HM / 4M5T-10849-HN / 4M5T-10849-HP / 4M5T-10849-HR / 4M5T-10849-HS / 4M5T-10849-KB / 4M5T-10849-KM / 4M5T-10849-KN / 4M5T-10849-KP / 4M5T-10849-KR / 4M5T-10849-KS / 4M5T-10849-MM / 4M5T-10849-MR / 4U7T-10849-BM / 4U7T-10849-BN / 4U7T-10849-FR / 4U7T-10849-FS / 4U7T-10849-HR / 6M5T-10849-PG / 6M5T-10849-PH / 7M5T-10849-BB / 7M5T-10849-DB / 7M5T-10849-DD / 7M5T-10849-DE / 7M5T-10849-EB / 7M5T-10849-FB / 7M5T-10849-HB / 7M5T-10849-KB / 7M5T-10849-PB / 8V4T-10849-GF / VP8V4F-10849-HH / 4M5T-10849-KR / 4M5T-10849-CL / 4M5T-10849-DN / 4M5T-10849-FB / 4M5T-10849-AL / 4M5T-10849-EM / 6M5T-10849-PF / 4M5T-10849-MP / 4U7T-10849-DM / 7M5T-10849-DC / 7M5T-10849-SB / 4M5T-10849-EP / 4M5T-10849-ER / 7M5T-10849-AB / 3M5T-10849-BJ / 4M5T10849JP / 4M5T-10849-JP / 4U7T10849HS / 4U7T-10849-HS / 4U7T10849KS / 4U7T-10849-KS / 7M5T10849BC / 7M5T-10849-BC / 3M5T10849MJ / 3M5T-10849-MJ / 3M5T10849DH / 3M5T-10849-DH / 4M5T10849GS / 4M5T-10849-GS / 4U7T10849KR / 4U7T-10849-KR / 7M5T10849BE / 7M5T-10849-BE / 4M5T10849GN / 4M5T-10849-GN / 3M5F10841A / 3M5F-10841-A / 4M5T-10849-FF / 4M5T10849FFOEM no: 3M5F10841A / 3M5F10A855A / 3M5T10849BH / 3M5T10849DJ / 3M5T10849FH / 3M5T10849FJ / 3M5T10849GJ / 3M5T10849HH / 3M5T10849HJ / 4M5T1049KM / 4M5T10849AM / 4M5T10849BH / 4M5T10849BJ / 4M5T10849BK / 4M5T10849BL / 4M5T10849BM / 4M5T10849CM / 4M5T10849DJ / 4M5T10849DK / 4M5T10849DL / 4M5T10849DM / 4M5T10849FM / 4M5T10849FN / 4M5T10849FP / 4M5T10849FR / 4M5T10849FS / 4M5T10849GM / 4M5T10849HK / 4M5T10849HL / 4M5T10849HM / 4M5T10849HN / 4M5T10849HP / 4M5T10849HR / 4M5T10849HS / 4M5T10849KB / 4M5T10849KM / 4M5T10849KN / 4M5T10849KP / 4M5T10849KR / 4M5T10849KS / 4M5T10849MM / 4M5T10849MR / 4U7T10849BM / 4U7T10849BN / 4U7T10849FR / 4U7T10849FS / 4U7T10849HR / 6M5T10849PG / 6M5T10849PH / 7M5T10849BB / 7M5T10849DB / 7M5T10849DD / 7M5T10849DE / 7M5T10849EB / 7M5T10849FB / 7M5T10849HB / 7M5T10849KB / 7M5T10849PB / 8V4T10849GF / VP8V4F10849HH / 4M5T10849KR / 4M5T10849CL / 4M5T10849DN / 4M5T10849FB / 4M5T10849AL / 4M5T10849EM / 6M5T10849PF / 4M5T10849MP / 4U7T10849DM / 7M5T10849DC / 7M5T10849SB / 4M5T10849EP / 4M5T10849ER / 7M5T10849AB / 3M5T10849BJ / 3M5T10849BK / 3M5T-10849-BK / 4M5T-10849-LS / 4M5T10849LS / 7M5T10849BD / 7M5T-10849-BD / 6U7T10849PG / 6U7T-10849-PG / 7U5T10849DC / 7U5T-10849-DC / 4M5T10849LR / 4M5T-10849-LR / 3M5T10849FK / 3M5T-10849-FK / 4M5T10849GR / 4M5T-10849-GR / 4M5T10849GP / 4M5T-10849-GP / 3M5T10849GK / 3M5T-10849-GK / 3U7T10849DL / 3U7T-10849-DL / 4M5T10849ES / 4M5T-10849-ES / 6S6T10849HF / 6S6T-10849-HF / 7M5T10849GB / 7M5T-10849-GB / 7M5T10849JB / 7M5T-10849-JB / 4M5T10849HF / 4M5T-10849-HF / 3M5T10849FG / 3M5T-10849-FG / 6U7T10849PF / 6U7T-10849-PF / 4U7T10849GR / 4U7T-10849-GR / 4M5T-10849-MS / 4M5T10849MS / 7U5T10849FB / 7U5T-10849-FB
